Description

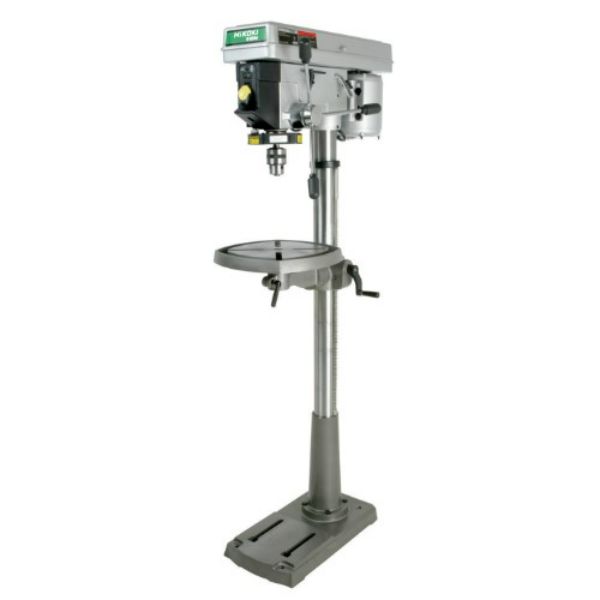

B16RM HWZ HiKOKI 380mm Laser Drill Press Standing 1600mm high this 1hp drill press offers 12 speed versatility and durable, accurate components. Like several HiKOKI models now, the drill press features an innovative laser guide system, projecting accurate X-Y axis lines onto the work piece.
This saves a huge amount of time when lining up and securing the work prior to d rilling.
Patented X-Y axis laser lines: X-Y axial laser lines for accurate pre-alignment of drilling location
Depth adjustment gauge allows accurate drilling of repetitive-depth holes
Durable cast iron table: surface tilts 45 degrees right or left and rotates out of the way when drill press base is used as a work surface
12 Speeds (210-2580RPM) - quick reference chart and quick belt tension release knob for fast speed changes
Standard with chuck key, wedge (drift) and hex key
HiKOKI 1 Year Warranty
Model # B16RM(HWZ)
Specifications
10 amp
Swing: 380mm
Chuck Type: JT3
Chuck Size: 16mm
Spindle Travel: 85mm
Power Input: 750W
No-load Speed: 210 - 2,580/min
Overall Height: 1,618mm
Base Dimensions: 279mm x 518mm
Table Dimensions: 336mm x 336mm
