Description

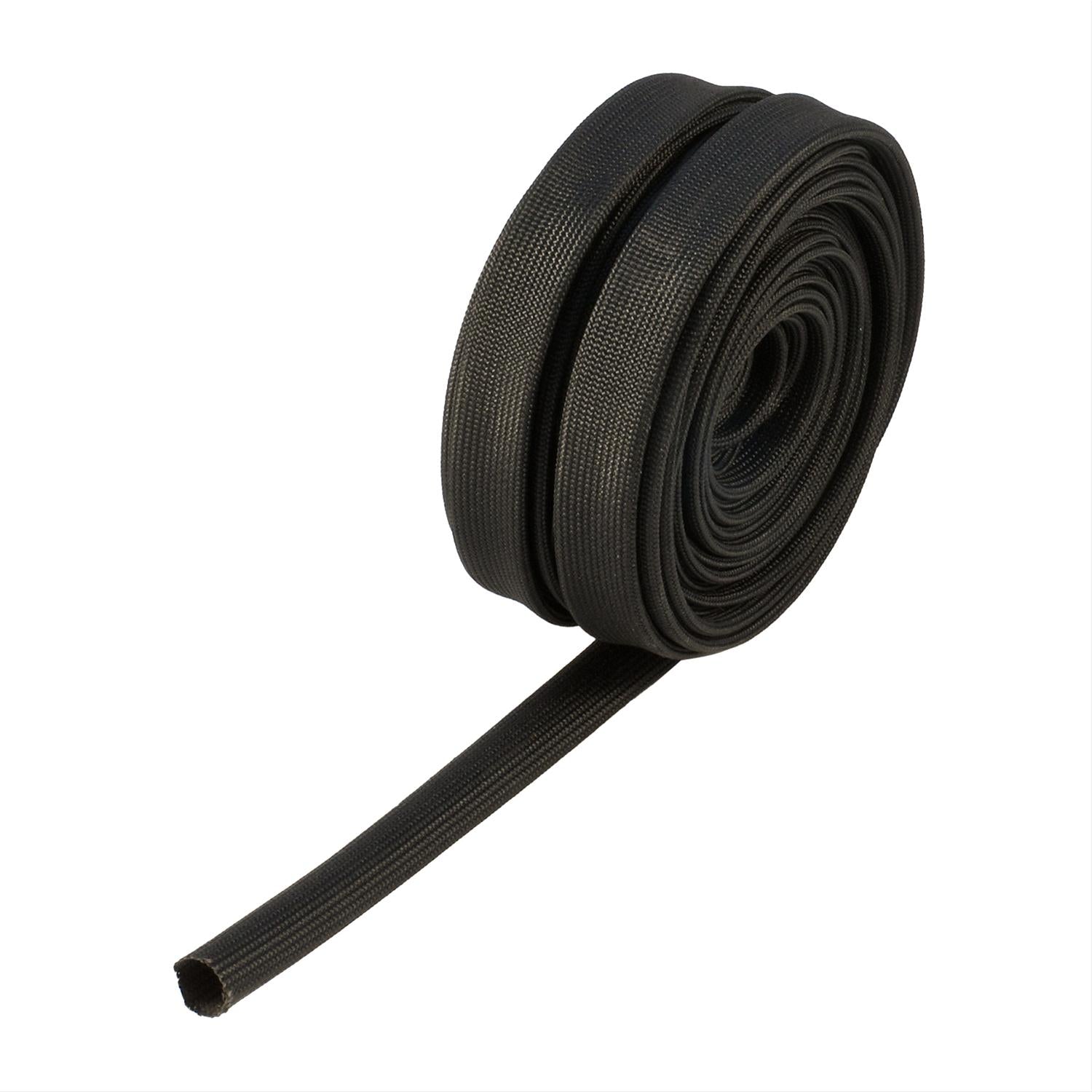

Heatshield Products Color Sleeves are an excellent way to protect wires, fuel lines, brake lines and more from thermal exposure while enhancing your vehicles appearance. The special weaving of the car heatshield allows it to expand over fittings during installation and return to its original size. Heat shield sleeve coatings can withstand 1,200F continuously. Rolls are 25 feet in length and have an adjustable inside diameter from 5/16 to 7/16 inch. Fasten using Thermal-Tie or hose clamps. Heatshield Products thermal-barrier color sleeves are available in red, blue, yellow, black and tan.
Features:
Capable of reducing up to 60% of radiant heat
Shields and protects ignition wires, great for 8 mm
Special weave allows it to expand over fittings and terminals
Adjustable id 5/16 in to 7/16 in x 25 ft roll
Made in the USA
HP Color Sleeve Installation Tips
To expand ID of sleeve, bunch or shrink the overall length of sleeve
To decrease ID stretch overall length
Secure ends of sleeve with Thermal-Tie, clamp, wire, or high temp electrical tape
