Description

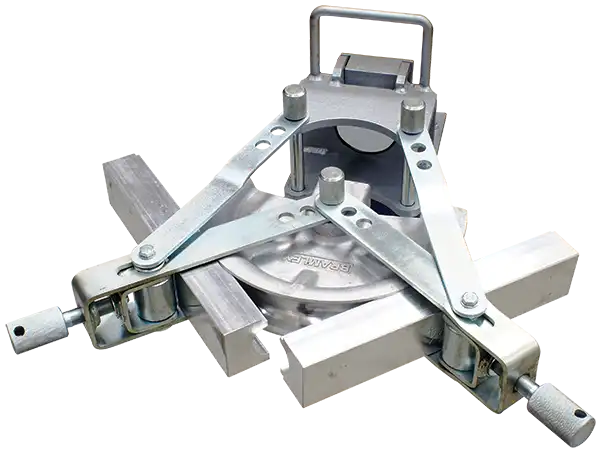

Bramley Hydraulic Thin Wall Tube Bender Head 25-50mm TBHYD-H
Please note that 068H Head can be purchased separately to fit to 026E Pipe Bender - call the store to discuss thanks
This is the tube bending head unit only – note formers and slippers sold separately as per the old model 068
Mild Steel: 1 - 2 inch N.B. (2mm wall thickness) capacity.
Stainless Steel: 1 - 1.1/2 inch N.B. (1.6m wall thickness) capacity
Aluminium: 1 - 2mm OD (2mm wall thickness) capacity
180 deg maximum bend for producing U-bends
Supplied with tripod stand
Former & Slipper Sets sold separately
Shipping: 40kg / 0.05m3
Formers available Below - please ask for price on below - not included with unit.
PIPE SIZE + BEND RADIUS: Last ones available now
1.3/8" (35mm) - 140mm -
1.1/2" (38mm) - 140mm
1.5/8" (41.3mm) - 140mm
1.3/4" (44.5mm) - 165mm
1.7/8" (47.6mm) - 165mm
