Description

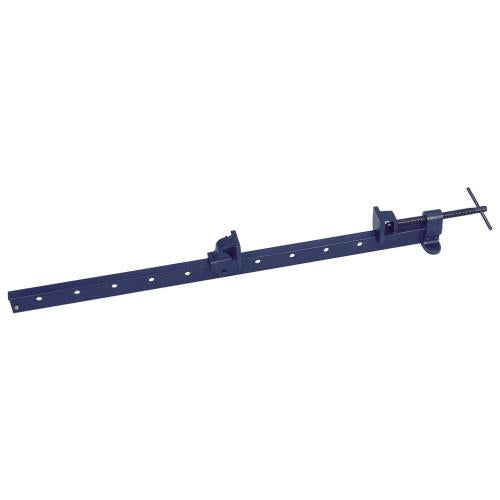

GZ39101 | Groz T - Clamp 48" (1200mm)
Features:
Designed for applications that require extra resilience under extreme pressure
T section (1” x 1-7/8”) is made from cold drawn steel, which offers great resistance to bending in use
Malleable iron head and slide allow these clamps to be used in heavy duty applications
Main screw has rolled ACME threads for smooth movement and increased resistance to wear
The sliding head is fastened to the T Bar by inserting a steel pin through any of the locating holes on the bar
The steel bar, head and slide have an attractive powder coated finish, the main screw, handle and pins are blackened for increased resistance to corrosion
Specifications:
Throat Depth: 48mm
Width of Clamp Face: 54mm
Bar Length: 1200mm
Capacity: 1050mm
