Description

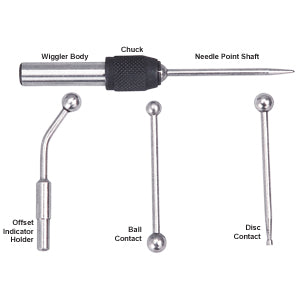

GZ03520 | Groz 5Pc Wiggler / Centre Finder Set
Wiggler/Center finder with its four interchangeable attachments is a versatile tool that finds application in many places
The attachments can be snapped onto the chuck without removing the collet nut and are clamped by a ball swivel joint which permits adjustment to an angular position
With needle point shark, working centers can be accurately located. Spring tension on the ball of the point permits guiding the point to true concentricity bringing perfect alignment between the work and machine spindle
Wiggler with Ball Contact is useful in locating work by first bringing the ball contact against the work and then indexing it to the desired position relative to the spindle
Wiggler with Disc Contact is particularly useful in locating work in confined areas such as slots or shallow holes. Diameter of Disc. 0.1" (2.5mm)
Wiggler with Offset Indicator holder is useful for checking run out or concentricity and in checking straightness or alignment of flat surfaces
