Description

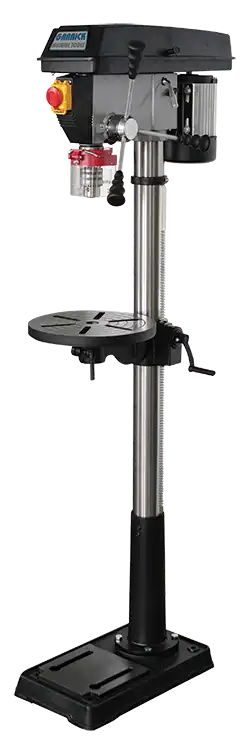

DPW16 | Garrick Workshop Pedestal Drill 16mm
Ideal for the jobbing workshop
Garrick Workshop Drill Presses have been specifically configured to deliver maximum features and performance during intermittent work duty.
NVR (No Voltage Release) Safety Switch
Safety Microswitch on belt guard, prevents running with unguarded belts
Safety Guard with flip up cover for quick chuck access
3 piece steel handles with non-slip rubber grips
Drilling depth gauge
Rack & pinion height adjustment
Cast iron table +45 degree to 0 degree to -45 degree table tilt left and right
Includes Drill Chuck & Arbor, Chuck Key and Drill Drift
| MODEL | DBW16 | DPW16 | DPW25 |
|---|---|---|---|
| Type | Bench | Pedestal | Pedestal |
| Motor | 550W | 550W | 750W |
| Drive Belts | O Section | A Section | A Section |
| Max Drilling Diameter | Ø 16mm | Ø16mm | Ø25mm |
| Chuck Capacity | 3-16mm | 3-16mm | 3-16mm |
| Spindle Travel | 80mm | 80mm | 85mm |
| No. of Speeds | 16 | 16 | 12 |
| Speeds | 180-2770 / 220-3320 rpm | 180-2770 / 220-3320 rpm | 280-2380 / 340-2860 rpm |
| Spindle Taper | MT2 | MT2 | MT3 |
| Spindle-column Distance | 162.5mm | 162.5mm | 177mm |
| Spindle-Table Distance | 450mm | 725mm | 700mm |
| Spindle-Base Distance | 630mm | 1205mm | 1190mm |
| Swing | 325mm | 325mm | 345mm |
| Table Size | Ø290mm | Ø290mm | 290 x 290mm |
| Base Size | 420 x 250mm | 460 x 270mm | 460 x 270mm |
| Column Diameter | Ø 72mm | Ø 72mm | Ø 80mm |
| Height | 980mm | 1580mm | 1600mm |
| Net weight | 33kg | 40kg | 80kg |
| Carton Size | 770 x 450 x 260mm | 1110 x 460 x 275mm | 1130 x 495 x 277.5mm |
