Description

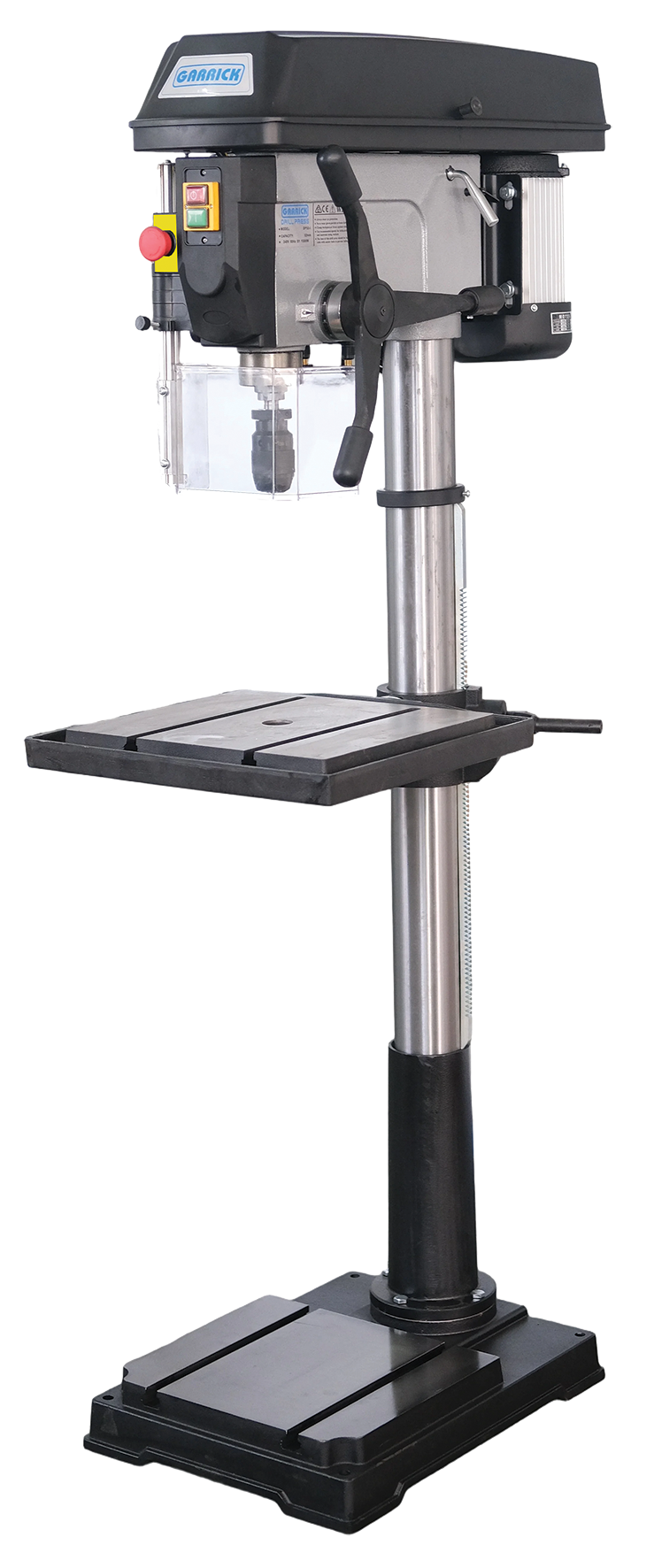

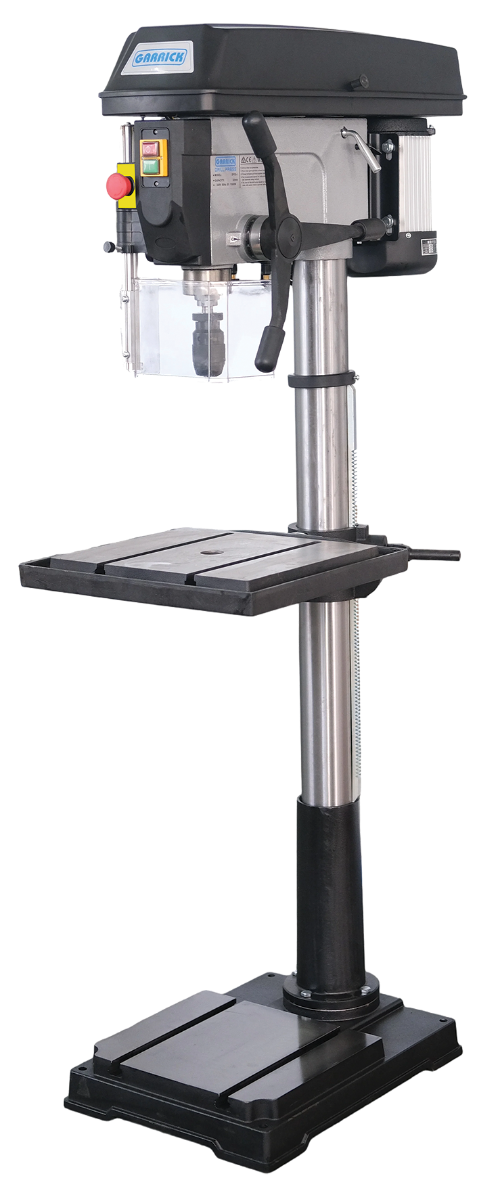

DP32-I | Garrick Pedestal Drill Press 1500W 32mm
NEW Features
More powerful S1 Continuous Duty rated motors, aluminium
housing
Zero voltage switches
Laser Guides
Keyless chucks
Micro switch Safety Guard with flip up cover over chuck
Emergency stop switches
Standard
Heavy duty A section V-belts and pulleys
Quick action, positive motor adjustment for belt tensioning
Heavy-duty precision depth stops
Solid one piece Cast Iron operating handles
Square tables for larger work area, with T slots for solid clamping
Tables tilt and rotate
Rack and pinion table height adjustment
Column and Quill precision machined from thick wall tube for rigidity
SPECIFICATIONS
Type: Pedestal
Single phase motor 230V 1500W
Max Drilling Capacity: 32mm
Chuck Size: 1 - 16mm
Swing: 510mm
Spindle Taper: MT4
Spindle Travel: 120mm
Spindle-column distance (mm) 255
Spindle-table distance (mm) 745
Spindle-base distance (mm) 1205
No. of Speeds: 12
Speed Range: 150 - 2450rpm
Overall Height: 1710mm
Column Diameter: 92mm
Quill Diameter: 72
Table Dimensions: 420 x 480mm
Weight: 130kg
