Description

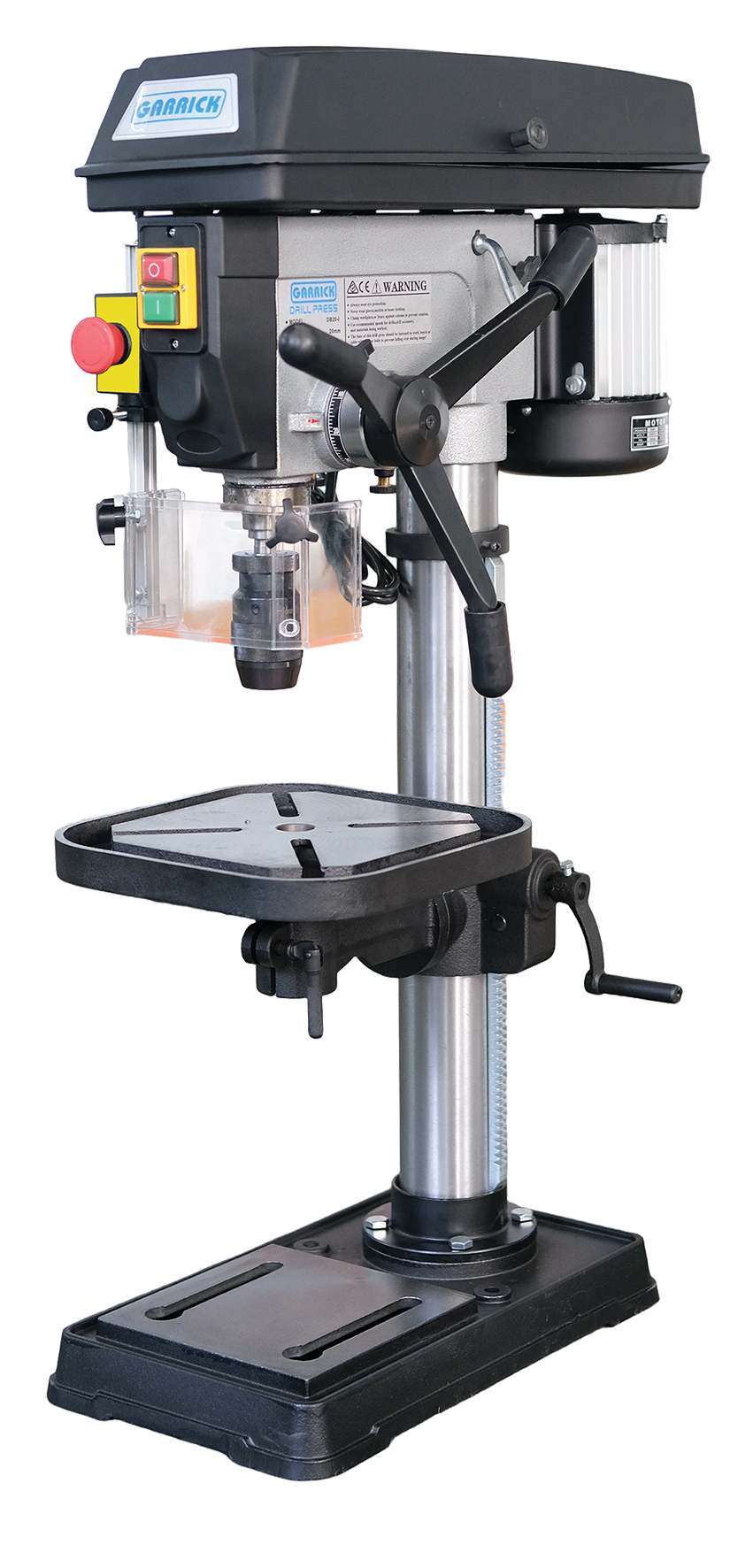

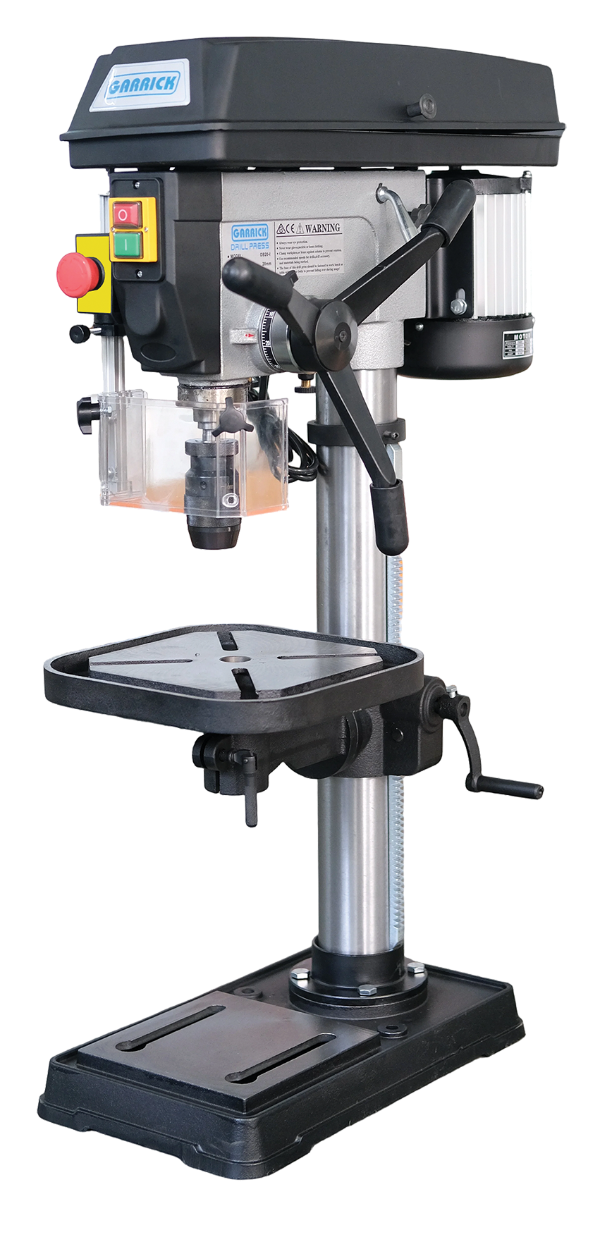

DB20-I | GARRICK PEDESTAL DRILL PRESS 750W 20MM
NEW Features
More powerful S1 Continuous Duty rated motors, aluminium
housing
Zero voltage switches
Laser Guides
Keyless chucks
Micro switch Safety Guard with flip up cover over chuck
Emergency stop switches
Standard
Heavy duty A section V-belts and pulleys
Quick action, positive motor adjustment for belt tensioning
Heavy-duty precision depth stops
Solid one piece Cast Iron operating handles
Square tables for larger work area, with T slots for solid clamping
Tables tilt and rotate
Rack and pinion table height adjustment
Column and Quill precision machined from thick wall tube for rigidity
SPECIFICATIONS
Type: Pedestal
Single phase motor 230V 750W
Max Drilling Capacity: 20mm
Chuck Size: 1 - 16mm
Swing: 325mm
Spindle Taper: MT3
Spindle Travel: 85mm
Spindle-column distance (mm) 176
Spindle-table distance (mm) 620
Spindle-base distance (mm) 810
No. of Speeds: 12
Speed Range: 280 - 2380rpm
Overall Height: 1000mm
Column Diameter: 80mm
Quill Diameter: 52
Table Dimensions: 290x290mm
Weight: 60kg
