Description

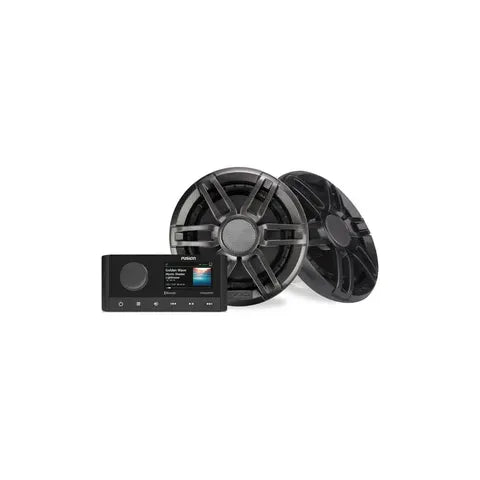

FI010-02250-60 FUSION MARINE STEREO KIT MS-RA210 WITH XS SPORTS SPEAKERS
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion MS-RA210 marine stereo and speaker kit will put the perfect soundtrack at your fingertips.
- Enjoy your music ASAP. Your marine stereo and both speakers come ready to install
- Easily control music from your compatible Garmin MFD1, smart device or Garmin watch
- Built-in Class D amplifier brings aboard higher efficiency and greater output
- Multi-Zone Technology makes you the captain of two separate audio zones
- Conveniently update software via Bluetooth technology2 from the Fusion-Link app on your compatible smart device
- Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers
Weight MS-RA210: 12.4 oz (350 g)
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32deg to 122deg F (0deg to 50deg C)
Current (max.) 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range Up to 30 ft (10 metres)
ANT wireless range Up to 10 ft (3 metres)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz +7 dBm nominal
Compass-safe distance 5.9in (150 mm)
Display 2.7in optically bonded colour LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power 200 W
Software updates USB
Warranty 1 year
Speaker Specifications
Physical dimensions (HxWxD)
XS Sports Speaker: 6.97in x 3.27in (177 x 83 mm)
Water rating IP65
Configuration Coaxial
Speaker size 6.5in
Peak power (Watts) 200 W
RMS power (Watts) 50 W
Sensitivity (1 watt/1 metre) 91 dB
Frequency response 80 Hz-18 kHz
Nominal impedance 4 ohm
Recommended amplifier power (RMS) 20-150 W/Ch
Operating temperature range 32deg to 122deg F (0deg to 50deg° C)
Voice coil diameter 1.18in
Cone material Polypropylene cone with cloth surround
Tweeter type Aluminium dome
Compass-safe distance 122in (310 cm)
Mounting diameter clearance 5.31in (135 mm)
Mounting depth clearance 2.64in (67 mm)
Sealed enclosure volume 0.28 cubic ft (8 L)
