Description

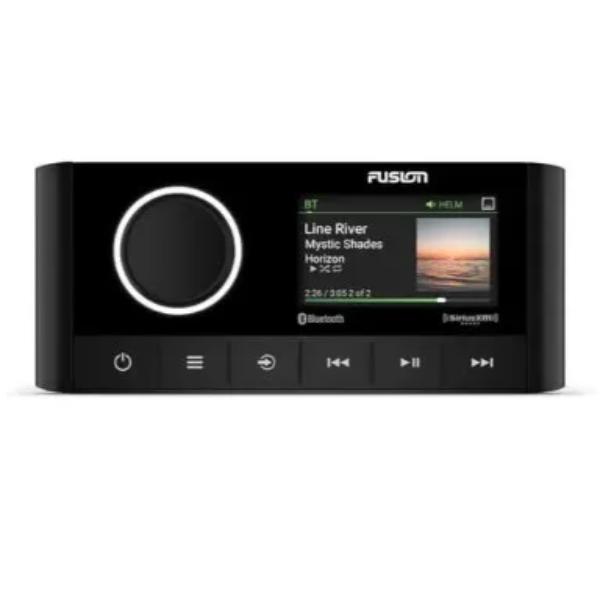

FI010-02138-00 FUSION APOLLO RA670 MARINE ENTERTAINMENT SYSTEM WITH DSP
AWARD-WINNING INNOVATION REEMBODIED
The Apollo RA670 marine stereo inherits key audio innovations and revolutionary technology from the award-winning Apollo RA770, reimagined in a compact form factor.
• Custom audio profiles for each zone on your boat to deliver superior quality audio
• Enjoy the freedom of musical choice with Fusion’s PartyBus Network technology
• Experience seamless high-quality audio streaming from your music app via the AirPlay software feature.
• Multi-Zone Technology gives you control of three separate audio zones.
• Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS
Built on the True-Marine design philosophy from Fusion , the Apollo RA670 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration and UV.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
General
DIMENSION 6.18in x 2.68in x 4.83in (157 x 68 x 123 mm)
DISPLAY 2.7in optically bonded color LCD
WEIGHT 1.65 lbs (750 g)
WATER RATING IPX6 and IPX7 (front panel only, when properly installed)
OPERATING TEMPERATURE 32deg to 122deg F (0deg to 50deg C)
CURRENT (MAX) 15 A
Networking
NMEA 2000 LEN 1 (50 mA)
BLUETOOTH WIRELESS RANGE up to 30 ft (10 meters)
ANT WIRELESS RANGE Up to 10 ft (3 meters)
WIRELESS FREQUENCIES/PROTOCOLS BLUETOOTH : 2.4 GHz @ +13.29 dBm nominal
ANT : 2.4 GHz @ +6.92 dBm nominal
Audio
AMPLIFIER Class-D (2 ohm stereo-stable)
Stereo Features
PEAK POWER 280 watts
RATED POWER OUTPUT (2 OHM) 43 watts RMS x 4 @ 14.4 V input < 10% THD
RATED POWER OUTPUT (4 OHM) 26 watts RMS x 4 @ 14.4 V input < 10% THD
BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) yes (with custom DSP profile setup using Fusion-Link app)
PARTYBUS -NETWORK CAPABILITIES yes (wired)
FUSION-LINK CONTROL yes (MFD, smart device and Garmin watch)
MULTI-ZONE TECHNOLOGY 3 zones
BLUETOOTH WIRELESS TECHNOLOGY
ANT WIRELESS TECHNOLOGY
SIRIUSXM-READY
DAB+ READY
OPTICAL AUDIO INPUT
SUPPORTS ERX WIRED REMOTE
SUPPORTS NRX WIRED REMOTE
MULTI-LANGUAGE INTERFACE
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish
SOFTWARE UPDATES Over-the-air updates via Fusion-Link app / USB
WARRANTY 3 years
Sources
SUPPORTED SOURCES
AM, FM, BLUETOOTH, Apple AirPlay 2, digital optical input, USB audio, iPhone, iPod, AUX x1, UPnP, MTP
SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)
DAB+ ready (available in Europe and Australia only)
Connections
AUXILIARY INPUTS (RCA) 1
OPTICAL AUDIO INPUTS (DIGITAL OPTICAL INPUT SPDIF) 1
ETHERNET PORTS 1
NMEA 2000 PORTS 1
USB 2.0 PORTS 1
SIRIUSXM PORTS 1
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) 1
SPEAKER CONNECTIONS 4 (2 zone amplified)
RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) 3 zones (requires external amplification)
LINE OUT 3 (L + R per zone, requires external amplification)
SUBWOOFER OUT 3 (1 mono output per zone, requires external amplification)
Electrical features
POWER INPUT 10.8 - 16 VDC
COMPASS SAFE DISTANCE 7.87in (200 mm)
