Description

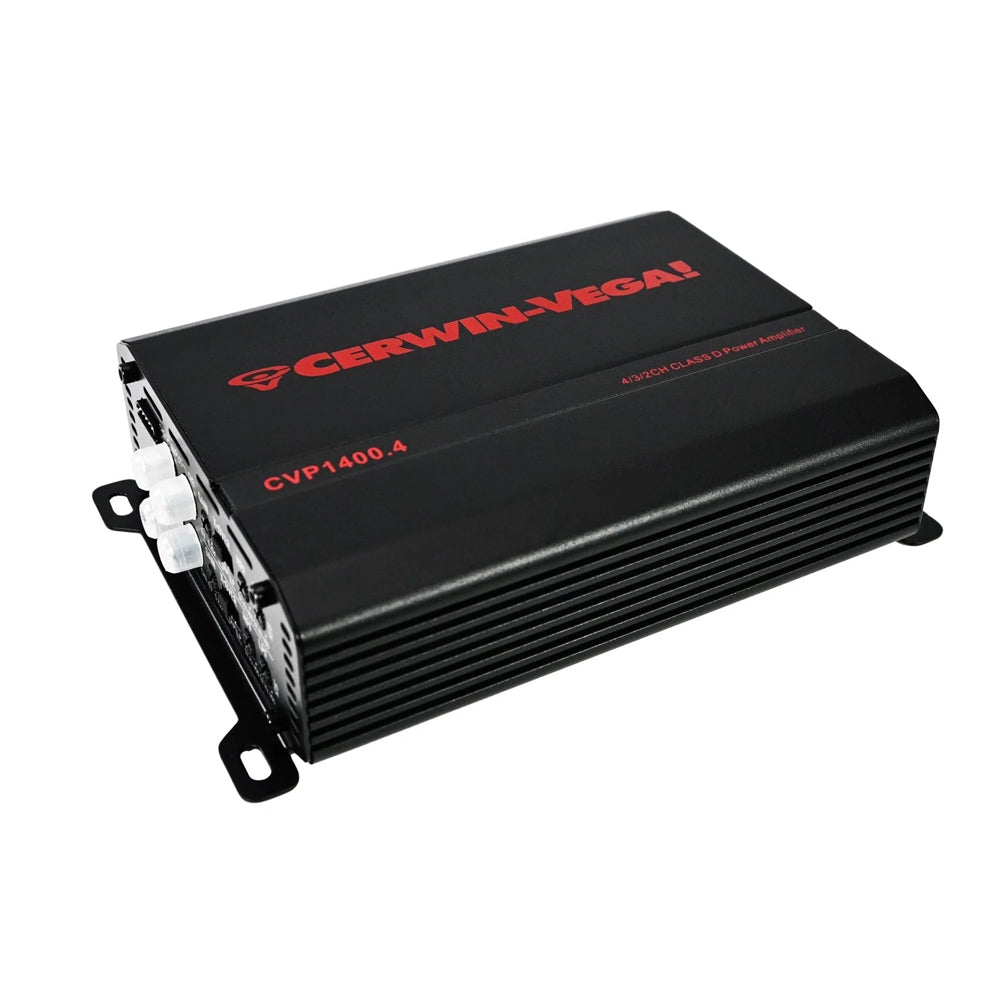

CVP1400.4 | Cerwin Vega 4-Channel CVP Series Small Chassis Amplifier Class-D 1400W
The Cerwin-Vega CVP1400.4 CVP Performance 4-Channel Class D Amplifier delivers powerful, efficient, and crystal-clear sound performance in a compact chassis designed for modern vehicles. Rated at 1400 watts max power and delivering 80 watts RMS per channel, this high-performance car amplifier is engineered to dramatically upgrade your factory or aftermarket audio system with clean, dynamic output that cuts through road and engine noise.
The CVP1400.4 is perfect for powering door speakers, component systems, and coaxial speakers with clarity and authority. Its impressive power-to-size ratio ensures you hear and feel your music with enhanced detail, punch, and dynamic range.
Compact design. Clean power. Legendary Cerwin-Vega performance.
Elevate your vehicle’s audio system with the CVP1400.4 and experience sound that stands out on every drive.
Specifications
RMS Power Ratings @ 4Ohms: 80W x 4
RMS Power Ratings @ 2Ohms: 140W x 4
RMS Power Ratings Bridged @ 4Ohms: 290W x 2
Channel Separation: >60dB
Frequency Response(+/-3bB): 10Hz-30KHz
S/N Ratio @ A/W 30k: ?90dB
Sensitivity: 250mV-6V
High Pass Filter(-6dB)/Subsonic: 52Hz-400Hz
Low Pass Filter(-12dB): 52Hz-400Hz
Power Protection Indicator
Short Circuit And Thermal Protection
Fuse: 30A x 2
Dimensions (LxWxH): 185mm x 125mm x 49mm
FEATURES
High-Level Inputs with Auto Turn On (4v-8v)
Full MOSFET DC-DC PWM Power Supply
Double Sided 2-Layer PC Board
SMD Technology
Adjustable Low-Pass and Hi-Pass Filters
Short Circuit Protection
Low Impedance Protection
Reverse Polarity Protection
Over Heating Protection
