Description

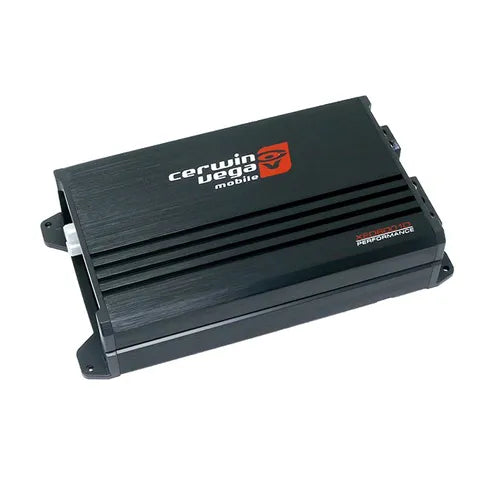

1 Channel XED Series Amplifier / 600W MAX
Features: Latest High-Efficiency Class D Topology Compact Size with Ambient backlit logo RCA Pass Thru output for easy system expansion Fully Variable Crossovers (12dB per octave) Handles HI and LO level input to 12V 2O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode Proprietary Vega Bass Boost EQ Up To 12dB
Specifications: Max Power: 600W MAX RMS Power at 2 ohm: 1 x 600W RMS Power at 4 ohm: 1 x 320W Type: Class D Power Supply: Full PVM Power Supply Threshold: 10.0DVC - 16.0DVC Idle Current: (0.7A) THD 4 (100Hz at 4O): 20.0V Impedance-Low Input Level: 20 KO Impedance-High Input Level:100 KO Output Impedance: 2O Damping Factor (50Hz at 4O): 70 Bandwith (-3dB): 10Hz - 250Hz Crossover (-12dB/Oct) Varile High Pass: not available Crossover (-12dB/Oct) Varile Low Pass: 35Hz-250Hz Crossover (-12dB/Oct) Varile Sub-Sonic: 10Hz- 50Hz Fuse Rating ATC (inside): 2x 30A Dimensions: 180mm x 120mm x 46.5mm
