Description

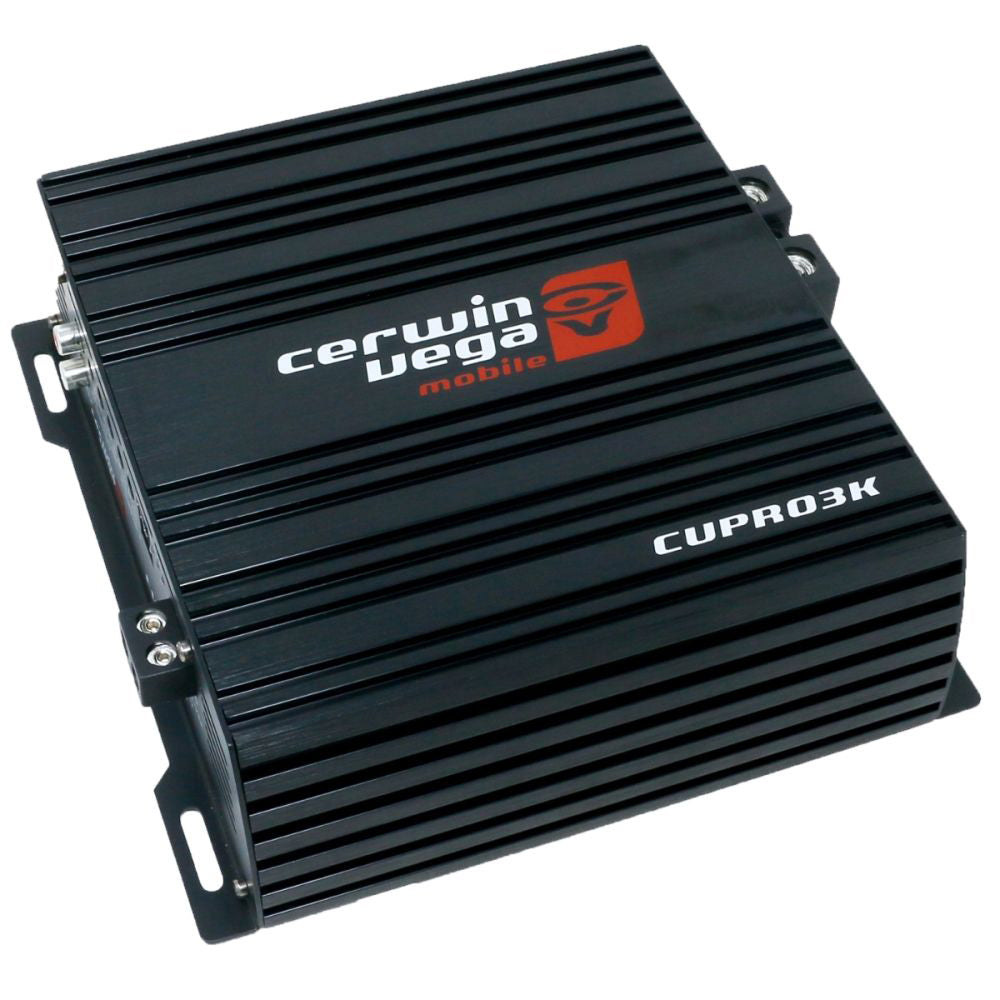

CVPRO3K | CERWIN VEGA AMPLIFIER CVPRO MONO 1100W RMS @ 4OHM / 2050W RMS @ 2OHM / 3000W RMS @ 1OHM
Key Features:
1-channel Class-D Monoblock car audio amplifier
Up to 3000 watts of high-output power for subwoofer systems
High-current circuitry for maximum bass performance
Advanced thermal management for reliable operation
Built for high-performance car audio and SPL setups
Efficient Class-D design for powerful, clean bass
Specifications:
POWER RATING
FREQUENCY RESPONSE (HZ): 15HZ-250HZ
RMS POWER PER CHANNEL 4Ω 1100W X 1
RMS POWER PER CHANNEL 2Ω 2050W X 1
RMS POWER PER CHANNEL 1Ω 3000W X 1
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V
Idle Current: 2.6A
DISTORTION
THD 4 (1KHz @4Ω): 0.1%
S/N Ratio (A weighted @1W): -90dBA
S/N Ratio (A weighted @FP): -105dBA
INPUT SENSITIVITY
Low Input Level: 0.2V-5.0V
High Input Level: 0.2V-5.0V
INPUT IMPEDANCE
Low Input Level: 20KΩ
High Input Level:
OUTPUT STAGE
Output Impedance: 0.0297Ω
Damping Factor: >150
Bandwidth (-3dB): 15Hz-20KHz
CROSSOVER (-12dB/Oct)
Variable High-Pass: 50Hz-20KHz
Variable Low-Pass: 15Hz-1KHz
Variable Sub-Sonic: 15Hz-1KHz
FUSE RATINGS (RECOMMENDED 1/2 THE FULL CURRENT DRAW FOR FUSING)
ATC: 150A
DIMENSIONS
L x W x H: 7.95”x 8.8”x 2.6” (202mm x 225mm x 66.5mm)
FEATURES
Caution High Current Draw Amplifier
Recommended 0/1 Gauge OFC Power/Ground Wire
LED Power/Protect Status Light
LED Clipping Indicator Light
Selectable Bass Frequency: 35Hz-70Hz
Variable Bass Boost: 0dB-12 dB
Wired Remote Bass Level Control Included
1-year Manufacturer's Warranty
For further details see: https://cdn.shopify.com/s/files/1/0645/1711/1988/files/CVPRO_SERIES_AMPLIFIERS_MANUAL.pdf?v=1763357942
