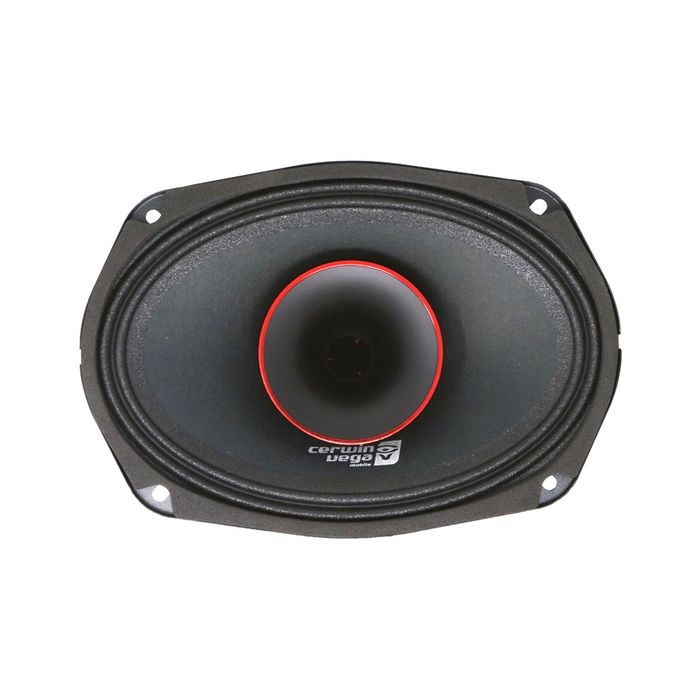

PH694 › 6 X 9 PRO FULL-RANGE CO-AX HORN SPEAKER
FEATURES:
PRO Full-Range Co-Ax Horn Speaker, Pair
Ferrite Strontium High Temp Magnet Structure
Heavy Duty Stamped Steel Basket
Advanced Voice Coil Heat Sink Design for better heat dissipation
1.5 Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
1.0 Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Tweeter
12dB 2nd Order Filter Crossover for better Protection of the Tweeter
SPECIFICATIONS:
6 X 9” PRO Full-Range Co-Ax Horn Speaker
160W RMS/320W MAX Power Handling
Ferrite Strontium High Temp Magnet Structure
Heavy Duty Stamped Steel Basket
Advanced Voice Coil Heat Sink Design for better Heat Dissipation
1.5” Double Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
1.0” Single Layer High Temp Voice Coil with Voice Coil former for Tweeter
Frequency Response: 80Hz -18Khz
High Sensitivity 101dB 1W/1M
12dB 2nd Order Filter Crossover for better Protection of the Tweeter
Mounting Depth: 3.90” / 99mm
Mounting Diameter: 8.74” x 5.98” (222 x 152mm)
