Description

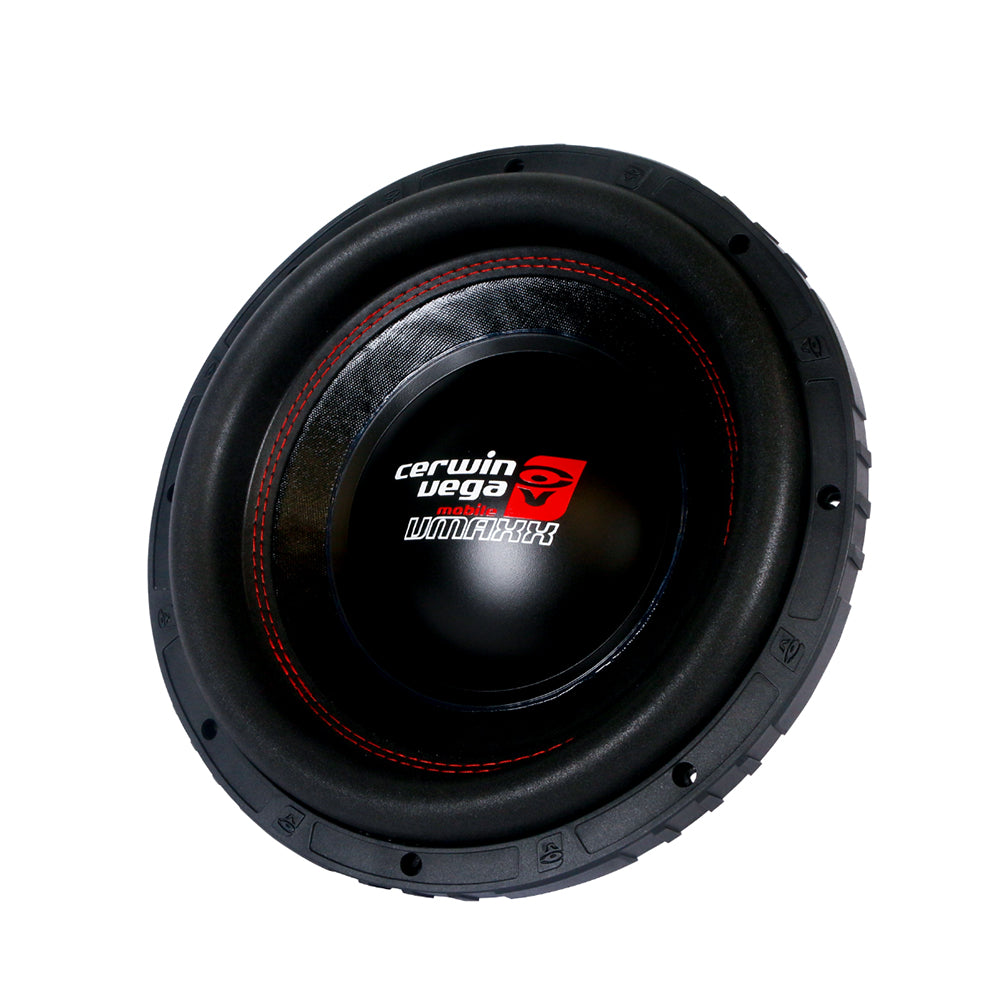

VMAX12D4 | Cerwin Vega 12 inch DUAL 4-Ohm High-Performance Subwoofer 2000W MAX / 1000W RMS
Features:
Heavy Industrial Strength Aluminium Cast Frame
Treated Semi-Pressed Pulped Cone
Elevated Motor Structure for Increased Cooling
Oversized Spider
Black Coated 3-inch Voice Coil for Higher Thermal Capability
Oversized Polished Black Chrome Distortion
Polished Bumped Backplate
Klippel Optimized Motor / Suspension Symmetry
Specifications:
SPL (dB): 86.9
Re(O)[series]: 2 Ohm / 8 Ohm
Qms: 4.49
Qes: 0.48
Qts: 0.44
Fs(Hz): 32.9
Vas(L): 44.2
Cms(mm/N): 0.12
Mms(g): 272.3
Sd(m2): 0.053
BL(T*M): 25
Xmax(mm): 14
Pwr(W) NOM/MAX: 1000RMS / 2000W
Displacement (ft3/L): 0.094 (2.67L) cu.ft / 3/L
Mounting Depth: 5.98 inch (152) in. (mm)
Mounting Diameter (inch/mm) 11.02 inch (280) in. (mm)
Screw Hole Diameter: 0.26 inch (6.5) in. (mm)
Total Diameter: 12.79 inch (325) in. (mm)
Amplifier options:
For 1 sub can use CVPRO3K for 2 Ohm Load
