Description

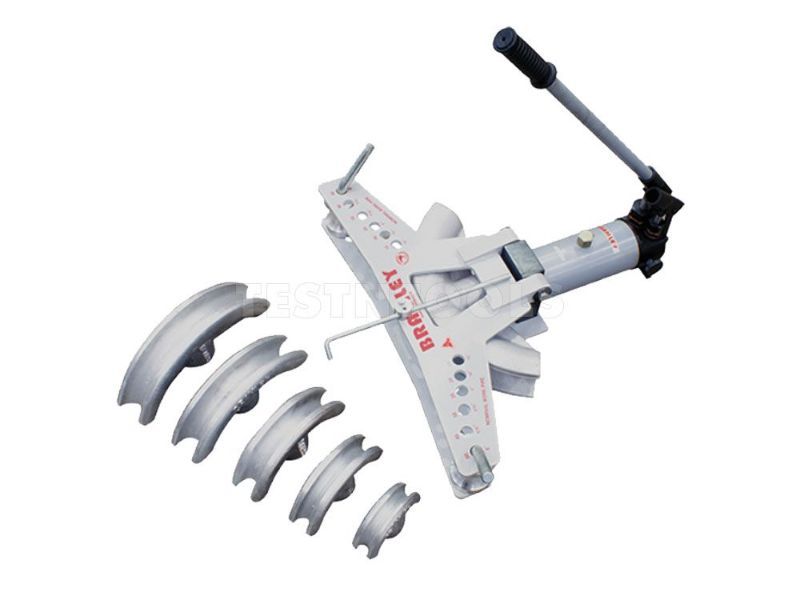

BRAMLEY MANUAL HYDRAULIC PIPE BENDER 1/2 IN-2IN (REPLACES 022) 24
FEATURES:
-3 mm wall thickness capacity
-Supplied with six formers, two bobbins (support slippers) and pins.
-Flip top frame for easy pipe and former replacement
-Spring return ram
-Bending radius measuring stop
-Two-stage pump action
-Lightweight aluminium alloy formers with large angle of arc to support pipe during bending. This results in a bend of superior quality.
-Cross section of formers is of elliptical form to minimise flattening of bend.
-Solid frame fabrication eliminates flexing during bending operation
-Hydraulic ram is easily removed from frame and converts to 12 ton jack
-Formers spigot size 38mm
-Shipping: 60kg / 0.09m3
SPECS
1/2" former - 75mm radius
3/4"former - 105mm radius
1" former - 140mm radius
1.1/4" former - 175mm radius
1.1/2" former - 200mm radius
2" former - 240mmradius
