Description

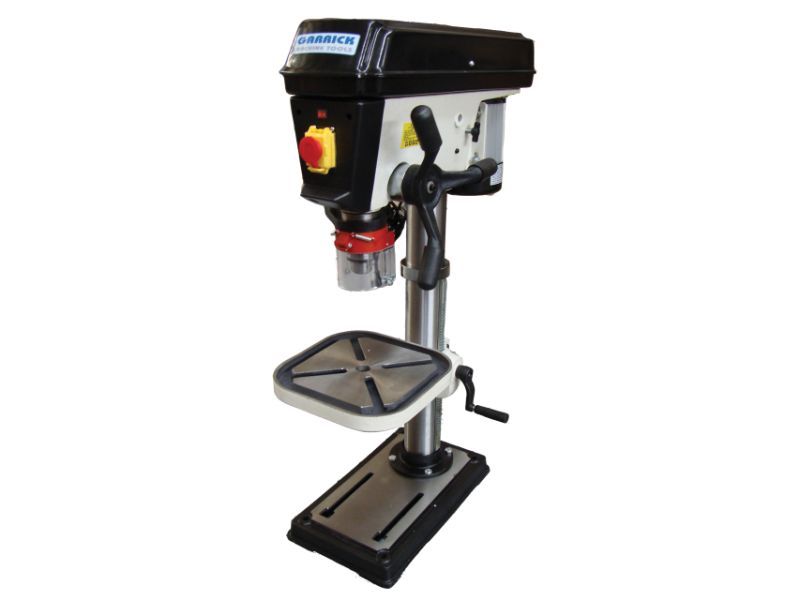

GARRICK BENCHMOUNT DRILL PRESS 20MM /DB20
FEATURES
Square table for larger work area, with T-slots for solid clamping
Table tilts and rotates
Solid one-piece Cast Iron operating handle
Safety cut-out switch on the belt cover
Safety guard with flip-up cover over chuck
Emergency stop switch
Heavy-duty precision depth stop
Quick action belt tensioning
Rack and pinion table height adjustment
Precision machined column and quill
Work light under head (bulb not included)
Powerful 240V Aluminium TEFC motors
A section Vee belts and pulleys
SPECIFICATIONS
Bench type drill press
Motor single phase 650W
Standard 10 amp plug
Max drilling capacity 20mm
Chuck size 3 - 16mm
Swing 356mm
Spindle taper MT2
Spindle travel 80mm
No. of Speeds 12
Speed range 120 - 2580rpm
Overall height 1000mm
Column diameter: 80mm
Quill diameter 52mm
Table dimensions 290 x 290mm
Weight 86kg
ALMOST THE PRICE OF A DBW20 - GET IN WHILST THE STOCKS LAST!!
