Description

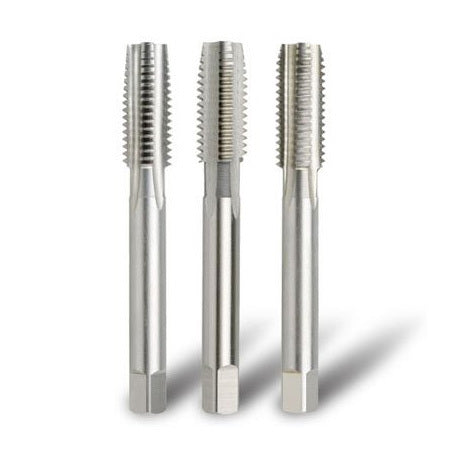

3032-10GTS BORDO HSGT TAP 10G (3/16in) UNC HAND TAP SET
UNC - Unified National Coarse
This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
BOTTOMING TAPS have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
INTERMEDIATE TAPS have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
TAPER TAPS have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
Diameter 10G
Pitch 24 tpi
Leading Set
Overall Length 58 mm
Tapping Drill 3.9 mm
