Description

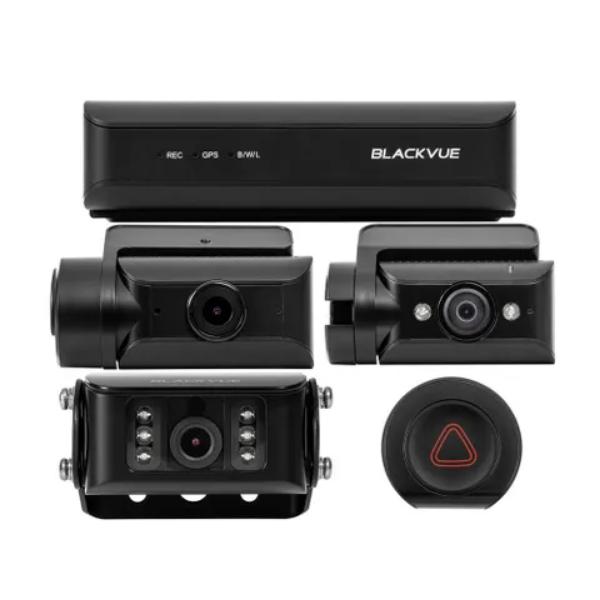

FIDR770X-BOX-TRUCK PRO BLACKVUE DR770X-BOX-TRUCK PRO 3CH CAMERA SYSTEM WITH CENTRAL RECORD BOX 2K DASHCAM 64 GB
BlackVue DR770X Box Truck Pro features front, rear and interior protection for your vehicle, with a waterproof external rear camera. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.
Total Video Protection for Trucks and Heavy Vehicles
The DR770X BOX TRUCK PRO is ideal to secure most large commercial trucks. The waterproof (IP69K) infrared rear camera connects to the secure Box recording unit via a 15m video cable. This allows to monitor not only the road behind, but also cargo loading and unloading operations.
The ultrawide interior camera is also equipped with infrared LEDs to capture clear video of the cabin under any light.
You can also connect the optional Connectivity Module to keep the dashcam connected to the Cloud at all times.
• Seamless Pairing with the BlackVue App
• Infrared external rear camera
• Waterproof coaxial cable
• GPS, Wi-Fi and Optional LTE
• Ultrawide Infrared Interior Camera
• Built-in Speaker, Impact Sensor and Motion Detection
• SOS Button
• BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web).
Model Name DR770X Box Truck
Channel
3CH
Rear Camera Connection
Coaxial cable
Memory Support
microSD card up to 256GB
Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front : Diagonal 139deg, Horizontal 116deg, Vertical 61deg
Rear Truck : Diagonal 116deg, Horizontal 97deg, Vertical 51deg
Interior IR : Diagonal 180deg, Horizontal 150deg, Vertical 93deg
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Front / Rear / Interior
Highest(Extreme): 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 51)
SD Card Failure Alert
YES
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
YES
GPS
External (Dual Band : GPS, GLONASS)
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor
Rear Camera IR Illumination
Rear Truck : 940nm (6 Infrared (IR) LEDS)
Interior IR : 940nm (2 Infrared (IR) LEDS)
Input Power
DC 12V-24V (3 pole DC Plug(3.5 x 1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V
Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V
* Approx. 40mA increase in current when Interior Camera IR LEDs are ON.
* Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
This models supports BlackVue Cloud
