Description

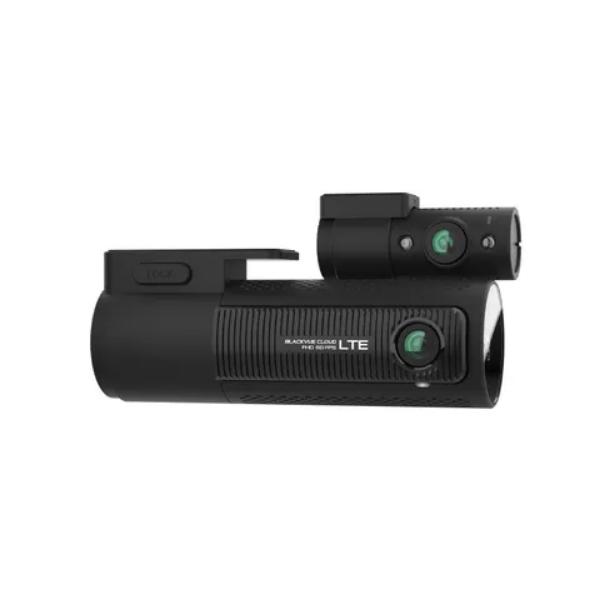

FIDR770X-2CH-IR-LTE BLACKVUE DR770X-2CH-IR-LTE TAXI OR UBER SYSTEM SIM CARD INPUT CLOUD SERVICE 64 GB
A Dashcam Built for The Cloud
Built-in 4G LTE Connectivity makes connecting to the Cloud hassle-free
Full HD 1080p front (60FPS) and interior (30FPS) powered by Sony STARVIS sensors.
Wide 139-degree view angle front and interior.
The interior IR camera truly sees in the dark, even pitch-black lighting conditions, thanks to its integrated infrared LEDs
With Mobile Hotspot Function, use you BlackVue as a Wi-Fi router for up to five devices (phone, tablet, laptop, etc)
Specifications
Model Name: DR770X-2CH IR LTE
Channel: 2CH
Highlights: Built-in 4G LTE, Sony STARVIS image sensors, Infrared (IR) Interior Camera
Product Dimensions:
Front: Black / Width 137.6 mm x Height 43 mm / 161 g
Interior: Black / Width 67.4 mm x Height 25 mm / 27 g
Rear Camera Connection: Coaxial cable
Memory Support: microSD card up to 256GB
Recording Modes: Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode: YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor: Front: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle : Front: Diagonal 139deg, Horizontal 116deg, Vertical 61deg
Interior: Diagonal 180deg, Horizontal 150deg, Vertical 93deg
Resolution Frame Rate : Front / Interior
Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps
* Frame rate may vary during Wi-Fi streaming.
Video Codec: H.264 (AVC)
Format Free: YES (Adaptive)
Event File Overwrite Protection: YES (up to 50)
SD Card Failure Alert : YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi : Built-in (802.11n (2.4~2.4835 GHz))
Cloud Compatible: YES
GPS: Built-in
Microphone: Built-in
Speaker: Built-in
Impact Sensor : 3-Axis Acceleration Sensor
LED Indicators : Front: REC LED, GPS LED, B/W /L LED, Front Security LED
Interior: Interior Security LED
Rear Camera IR Illumination
940 nm (4 Infrared (IR) LEDs)
Button : Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature: -20 degC - 70 degC (-4 degF - 158degF)
Storage Temperature : -20 degC - 70 degC (-4degF - 158 degF)
High Temp Cut Off: Approx. 80degC (176 degF)
Backup Battery: Built-in supercapacitor
Input Power: DC 12V-24V (3 pole DC Plug ( 3.5d x 1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Certifications
Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC
Interior: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Software: BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
Application: BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher
Others : Built-in 4G LTE module compatible with Nano-SIM.
Frequency Bands: North America (NA version): B2, B4, B12 | Australia (AU version): B3, B5 | Japan (JP version): B1, B3, B18, B19 | Europe/Rest of world (GL version): B1, B3, B7, B20
Bluetooth: Built-in (V2.1+EDR/4.2)
LTE: Built-in (SIM card not included)
