Description

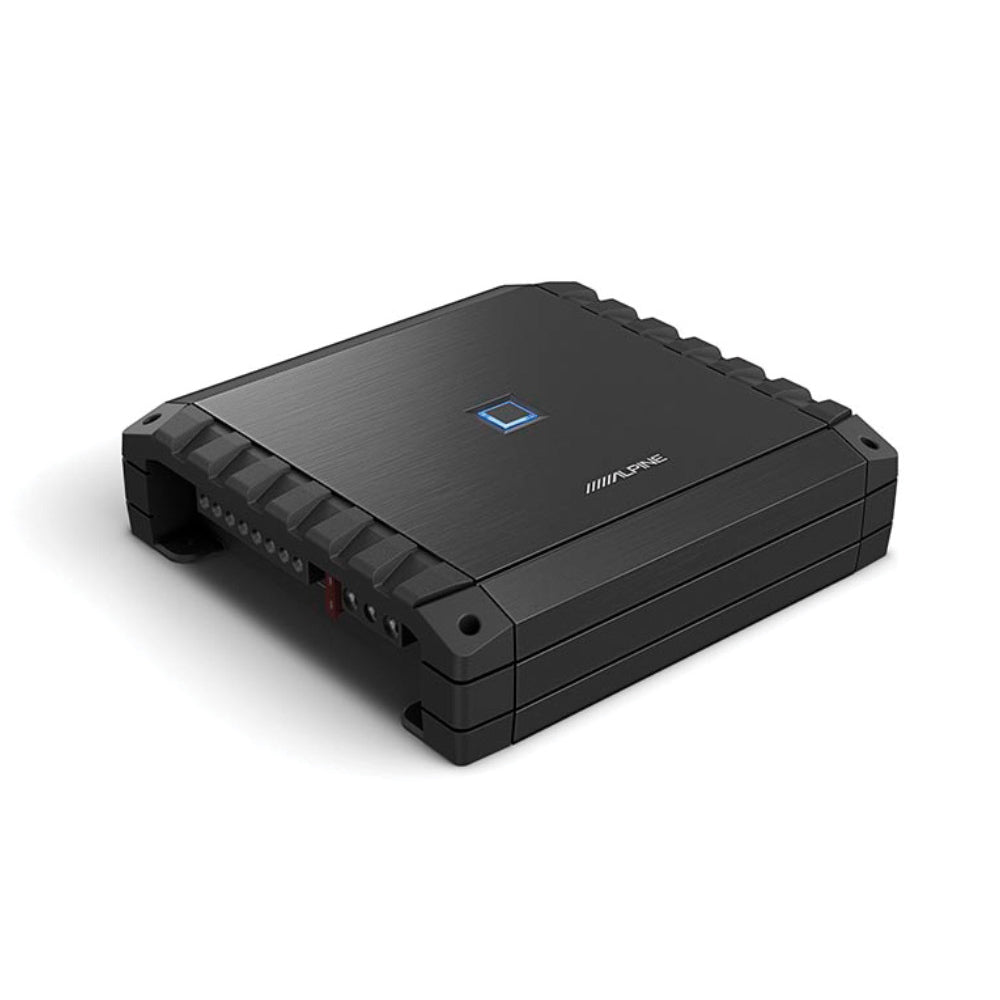

S2-A36F | ALPINE S2 SERIES 4 CH AMP 60W RMS X 4 / 180W RMS X 2 at 4OHM BRIDGED
The next generation of Alpine S-Series amplifiers are designed to take your car audio experience to the next level without breaking the bank. With a sleek new redesign and upgraded features from their predecessors, these amplifiers offer exceptional performance and power on an affordable budget.
Class-D Amplification (Digital)
Hi-Res Audio Certified
Channel Design: 4/3/2 Channel
Side panel controls
Thermal Management Control
Top Mounted LED Power/Status Indicator
Speaker Level Input
3 turn-on modes (DC HI, Remote HI, Remote LO)
Crossover: Variable Low-pass Filter (LPF) and High-Pass Filter (HPF),
Adjustable Gain Control
Mid-Bass EQ
Remote Bass Control (RUX-KNOB2) Ready (for channel 3+4 in bridged mode only)
Specifications
RMS Power Ratings
Per Channel into 2 Ohms, 14.4V (1%THD+N): 4 x 90W
Per Channel into 4 Ohms, 14.4V (1%THD+N): 4 x 60W
Bridged, 4 Ohms, 14.4V: 2 x 180W
Sound Tuning
Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
Mid-Bass EQ (0 to +12dB)
General
Power Requirements: 14.4 V.DC (9 – 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.5V – 10V / Low: 0.2V – 4.0V
High Level Input with automatic power on
Cable size: Power Cable AWG 4, SPK Cable AWG 8
Frequency Response: 10Hz – 40kHz
THD+N (@ 10W into 4 Ohms): <0.03%
Damping Factor: >100
Weight: 2.2kg
Dimensions
Heat Sink (WxHxD) mm: 220 x 57 x 210
What's in the box:
Alpine S2-A36F owner's manual
4-Channel amplifier (40A ATO fuse installed)
2 End caps
Four 3/4" screws
Four 1/4" screws
2mm Allen key
Owner's manual (En/ Sp/ Fr/ Others)
Alpine Verification Certificate
Warranty information
Power supply note
