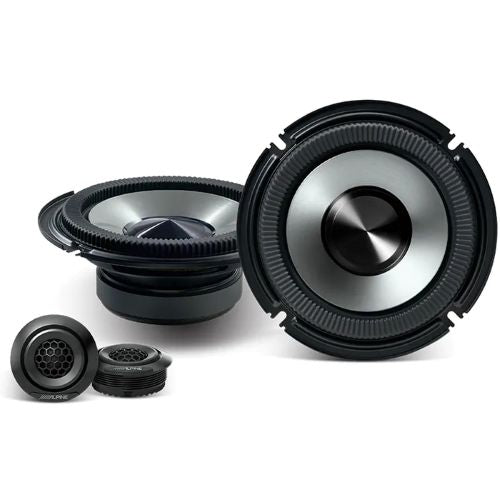

BRV-S65C | ALPINE BASSREV-SERIES 6.5" COMPONENT SPEAKER 50W RMS 2-WAY
Features:
6.5" BassRev Component Speaker Set (6.5" woofer + 3/4" tweeter)
Optimized to be paired actively with Alpine OPTIM8 using OPTIM Sync
Upgraded bass performance when tuned with OPTIM8 (Alpine Proprietary OPTIM Sync Algorithm)
Engineered for increased mid and low-end performance
HEDGE Surround (High Excursion Design Gathered Edge) increases low-end output and extension
Unique lapel cone shape enables higher excursion vs. traditional cones
Polypropylene + mica cone for increased rigidity and cleaner response
Ferrite magnet motor for stable performance and reliable power handling
Gun-metal chemical coating for a premium, durable finish
*BassRev tuning requires Alpine OPTIM8 DSP/Amplifier using Alpine OPTIM Sync Technology.
Tech Specs:
Woofer Size: 6.5"
Tweeter Size: 3/4" (Component) - Tweeter Passive X-over Included
Power Handling: 50W RMS / 150W Peak
Frequency Response (w/*BassRev Tuning ON): 38Hz - 20kHz
Frequency Response (w/*BassRev Tuning OFF): 60Hz - 20kHz
Sensitivity: 84dB (1W/1m)
Impedance: 4Ω
Mounting Depth: 2-3/8" (woofer)
Cone Material: Polypropylene (woofer), Polyester cloth-dome (tweeter)
Surround Material: Rubber HEDGE Design (woofer)
Voice Coil Diameter: 40mm (woofer), 20mm (tweeter)
Magnet Size: 95mm (woofer)
Magnet Material: Ferrite (woofer), Neodymium (tweeter)
Frame Material: Steel (woofer)
