Description

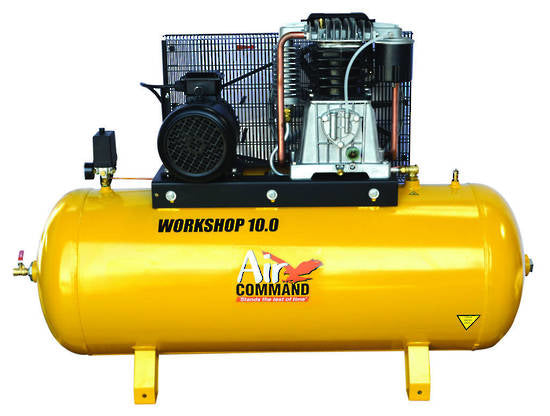

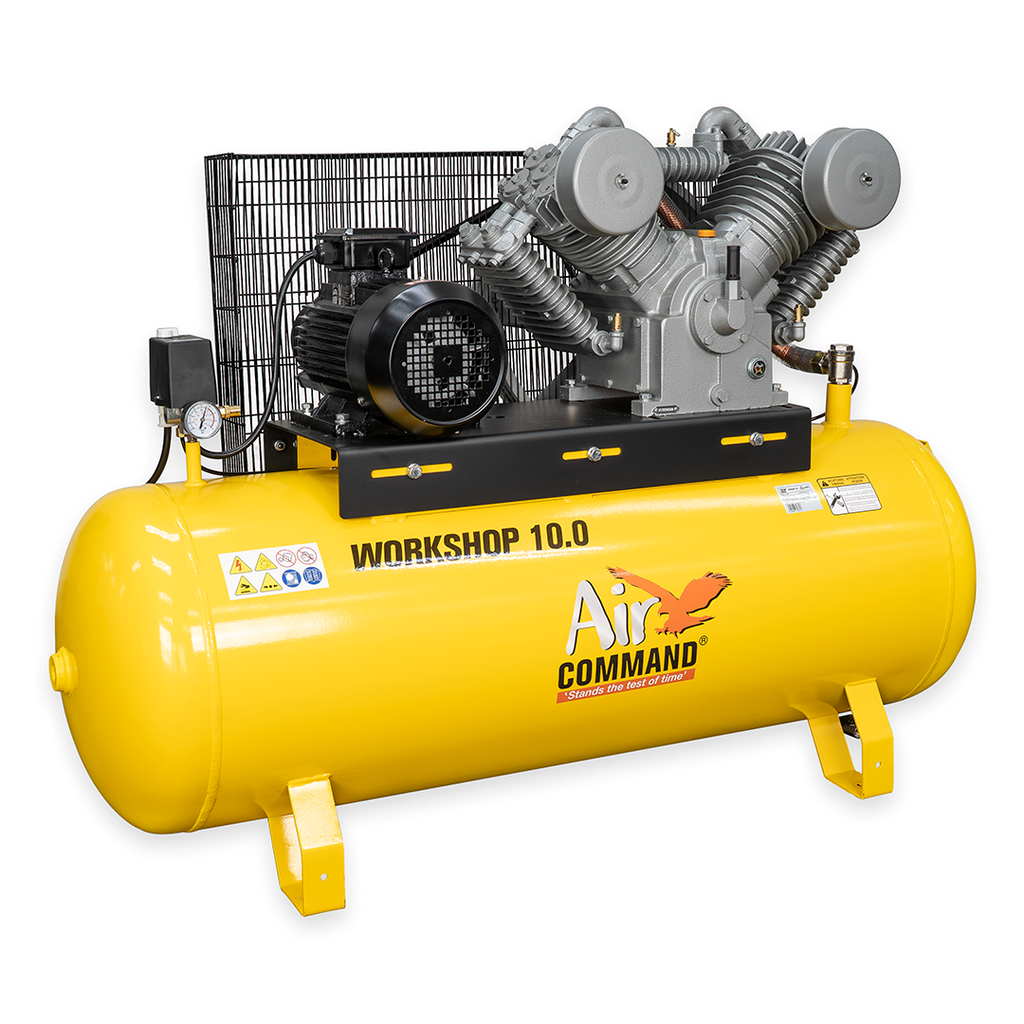

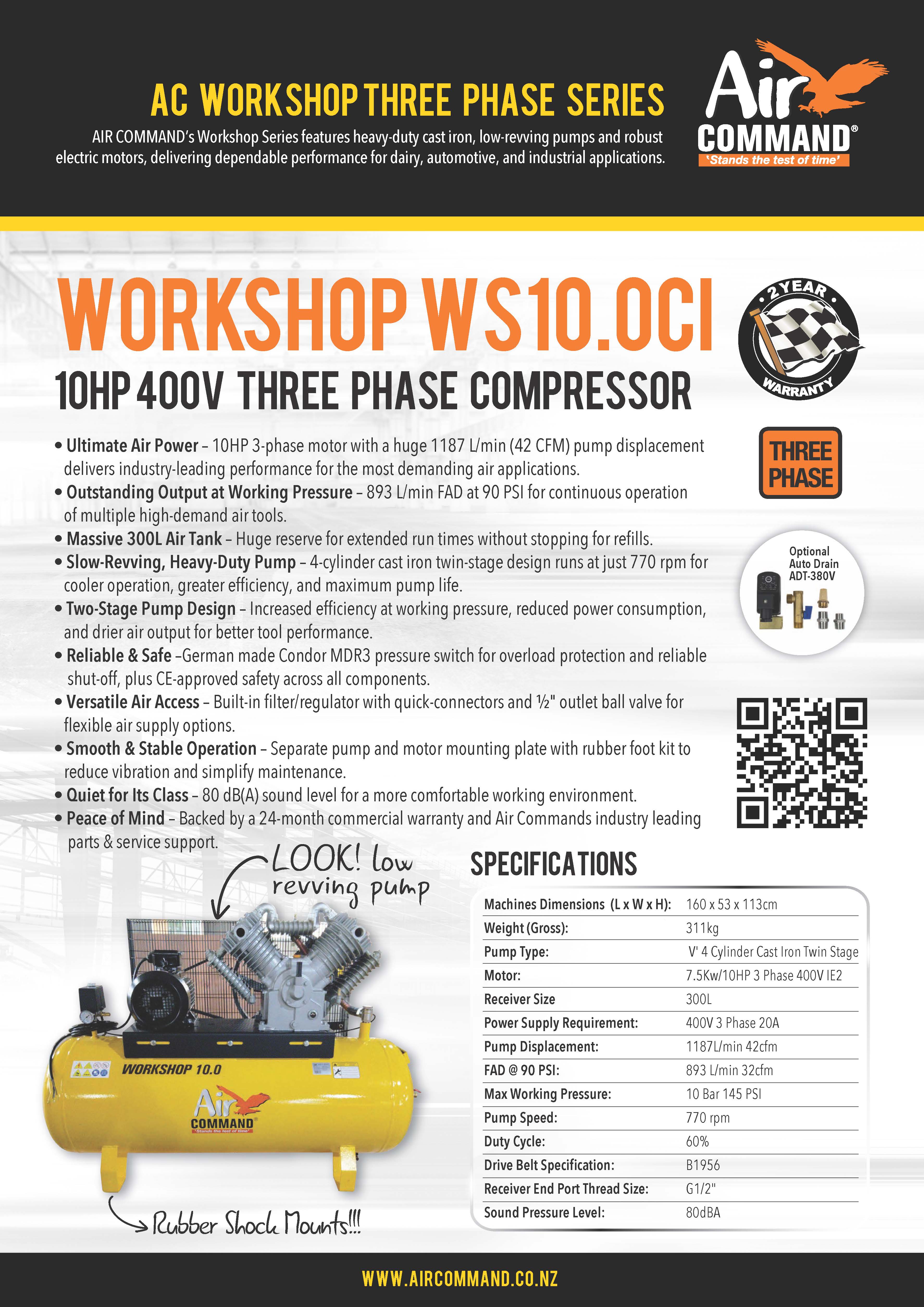

WS10.0CI | Air Command Workshop 10HP Air Compressor
Ultimate Air Power - Massive 3-phase 10HP motor with a huge 1187 L/min (42 CFM) pump displacement delivers industry-leading performance for the most demanding air applications.
Huge Output at Working Pressure – 893 L/min FAD at 90 PSI for continuous operation of multiple high-demand air tools.
Massive 300L Air Tank – Huge reserve for extended run times with fewer refills.
Slow-Revving, Heavy-Duty Pump – 4-cylinder cast iron twin-stage design runs at just 770 rpm for cooler operation, greater efficiency, and maximum pump life.
Two-Stage Pump Design – Increased efficiency at working pressure, reduced power consumption, and drier air output for better tool performance.
Versatile Air Access – Built-in filter/regulator with quick-connectors and 1/2 inch outlet ball valve for flexible air supply options.
Smooth and Stable Operation – Separate pump and motor mounting plate with rubber foot kit to reduce vibration and simplify maintenance.
3ph 400V 20A Power Supply Requirements
Motor Size (hp) / 10
Best Displacement / 38.1cfm, 1080L/min
Air Delivery / 25.1cfm, 710L/min
Maximum Pressure (PSI) / 150
Cylinders / 2
Pump Speed (RPM) / 1320
Tank Capacity (L) / 270
Dimension (L x W x H mm) / 1700 x 600 x 1270
Weight (kg) / 139
