Description

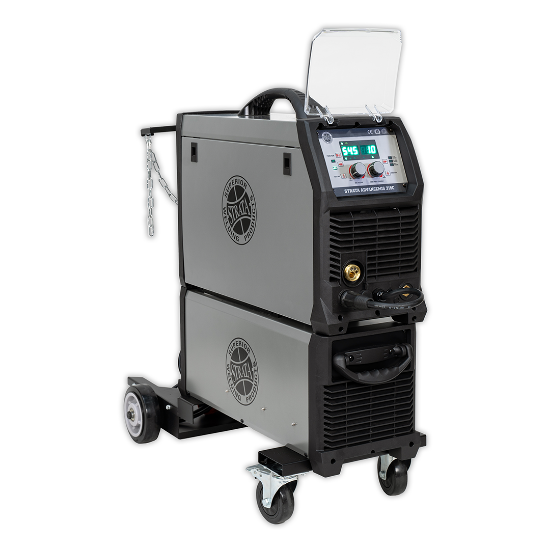

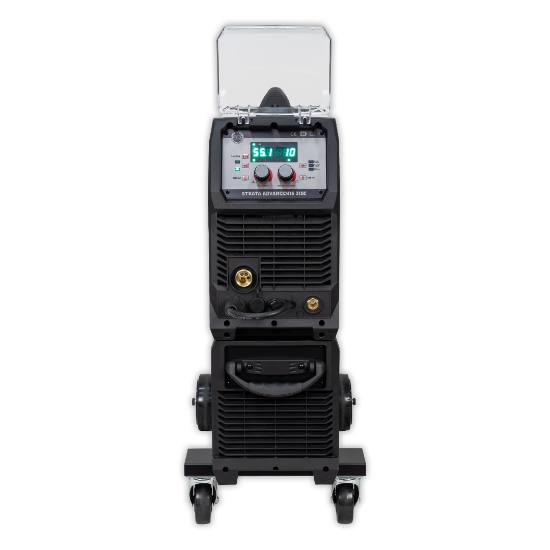

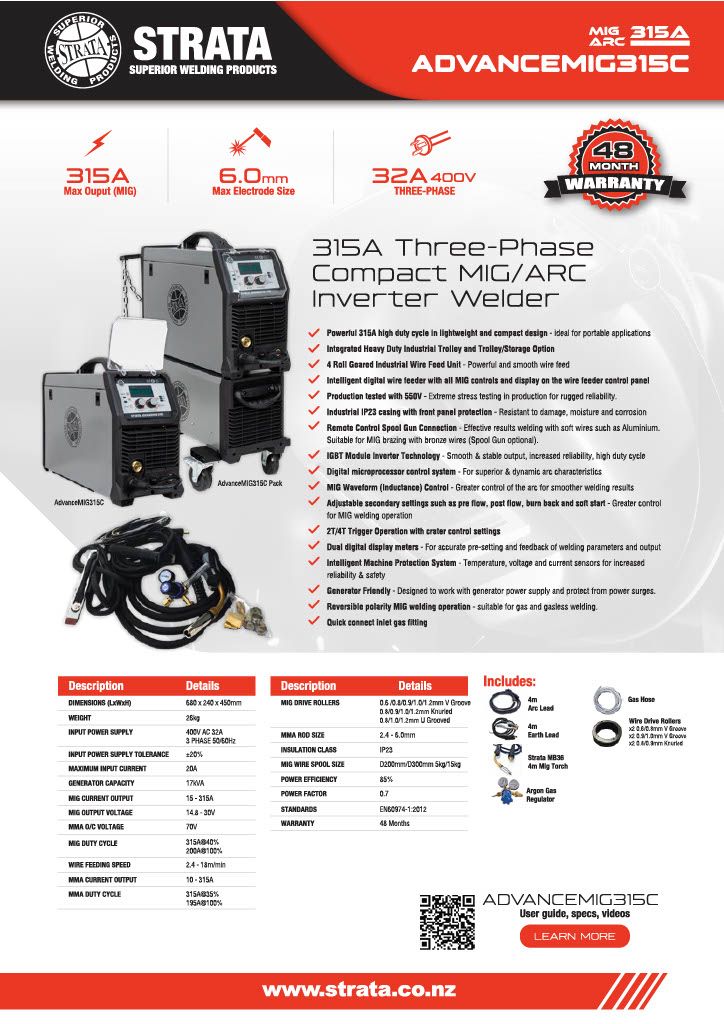

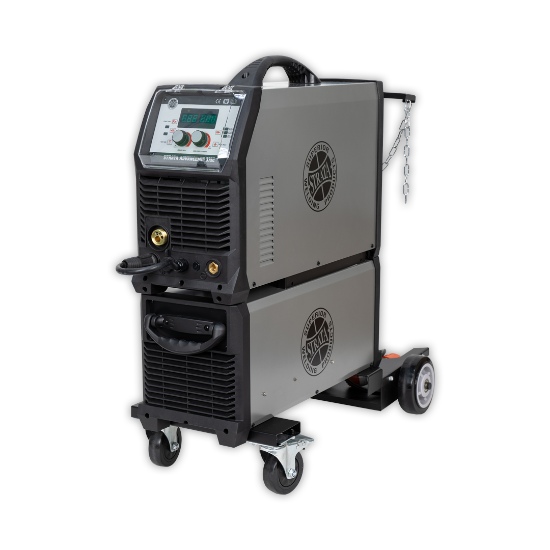

ADVANCEMIG315C Pack AdvanceMig315C Pack 315A MIG/MMA Welder & Trolley Package
This 3-phase, multi-process welding machine offers the latest in IGBT inverter technology in a compact package making it ideal for a wide range of jobs.
Features
4-Roll geared metal wire feed unit provides a powerful and smooth wirefeed.
Digital microprocessor control system with superior & dynamic arc characteristics
Remote control spool gun connection gives effective results welding soft wires such as aluminium
Lightweight and compact design - ideal for portable applications.
MIG waveform (inductance) gives good control of the arc for smooth welding results
Industrial IP23 casing with front panel protection, resists damage, moisture and corrosion.
Great control MIG welding with adjustable pre-flow, post flow, burn back and soft start settings
2T/4T trigger operation with crater control settings
Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
Designed to work with generator power supply with protection from power surges.
Reversible polarity MIG welding operation - suitable for gas & gasless welding.
Dimensions: 680x240x450mm
Weight: 26kg
Maximum Input Current: 20A
Generator Capacity: 17KVA
MIG Drive Rollers Available: V Groove 0.6/0.8/0.9/1.0/1.2mm Knurled: 0.8/0.9/1.0/1.2mm U Groove: 0.8/1.0/1.2mm
Mig Wire Spool Size: D200mm/D300mm 5kg/15kg
MMA/TIG Duty Cycle: 315A at 35% 195A at 100%
MMA Rod Size: 2.4 - 6.0mm
Standard Warranty: 36 months
Mig Output Current: 15A - 315A
MIG Duty Cycle: 315A at 40%, 200A at 100%
Includes: 3m Earth Lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Professional MIG Torch, Argon Gas Regulator, CO2 Cylinder Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas Hose Clamp, Wire Drive Roller groove (0.6-0.8mm & 0.9-1.0mm) & Wire Drive Roller flux cored (0.8-0.9mm and trolley
